SMF80-2B

Review (0)

Model: SMF80-2B

SINGLE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1, IEC 60034-1
for range of rated voltage: 230 V – 50Hz
degree of protection: IP54
insulation class F
duty S1
temp. -15ºC to +40ºC
CE mark

Rated output (kW): 1,1
Rated speed (rpm): 2820
Rated current IN at 230V (A): 7,15
Efficiency η [%] IE2: 72
Power factor cos φ : 0,95
Torque TN (Nm): 3,8
Starting current/rated current IL/IN: 4,1
Starting torque/rated torque TL/TN: 0,62
Run capacitor μF a 450 V: 31,5
Motor weight (kg): 10

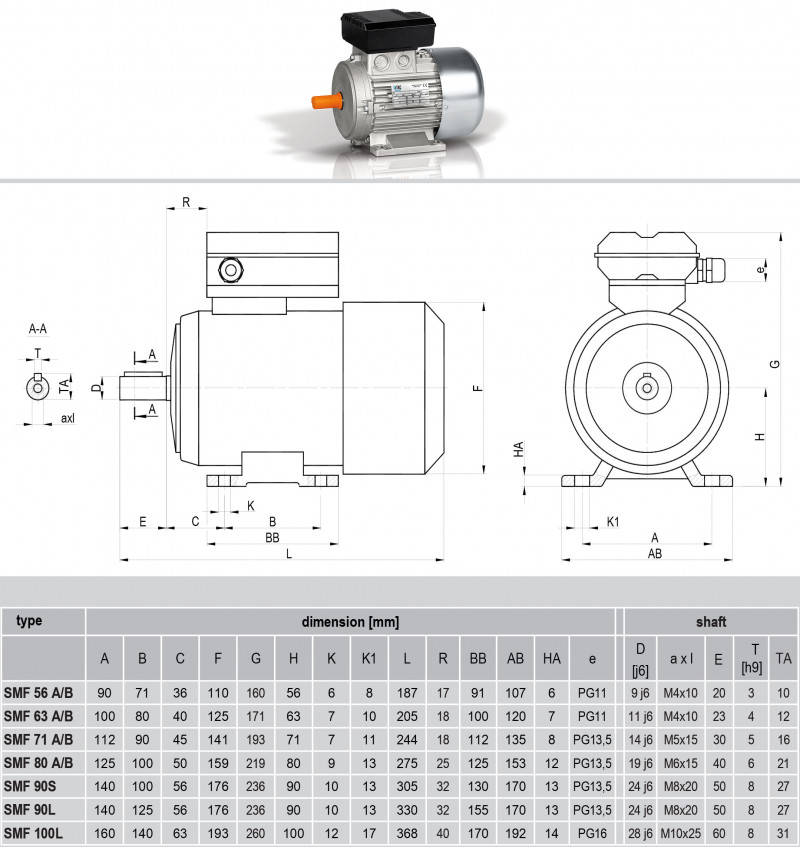

Download general technical datasheet for the construction characteristics of the motors

Thermic :

Mounting Arrangements :

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €56.43
10	10%	Up to €225.70
20	15%	Up to €677.10
40	25%	Up to €2,257.00
50	35%	Up to €3,949.75
100	45%	Up to €10,156.50

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.
