SF160M-2A

Review (0)

Model: SF160M-2A

THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1
for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
IEC 60034-1
degree of protection: IP54
insulation class F
duty S1
temp. -15ºC to +40ºC
CE mark

Rated output (kW): 11
Rated speed (rpm): 2930
Rated current IN at 400 V (A): 20,5
Efficiency η [%] IE1: 88
Power factor cos φ : 0,88
Torque TN (Nm): 35,9
Starting current/rated current IL/IN: 6,8
Starting torque/rated torque TL/TN: 2,5
TMax/TN: 2,7
Motor weight IE1 (kg): 79

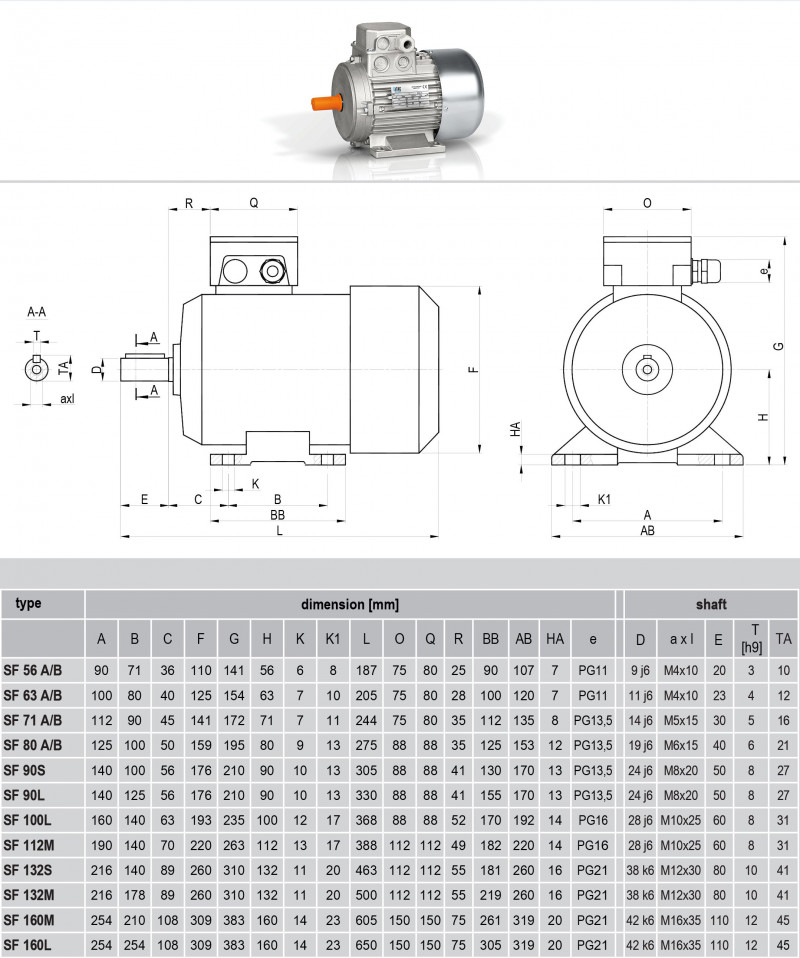

Download general technical datasheet for the construction characteristics of the motors

Thermic :

Mounting Arrangements :

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €430.42
10	10%	Up to €1,721.66
20	15%	Up to €5,164.99
40	25%	Up to €17,216.64
50	35%	Up to €30,129.12
100	45%	Up to €77,474.88

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.
